Wednesday Math, Vol. 45: Regular tilings of the plane

A tiling of the plane is the covering of all of a flat two-dimensional surface with a repeating pattern. The fancy word is tessellation.

Think bathroom tiles. Think M.C. Escher. Think mosaics.

If you are also thinking about the renowned physicist Roger Penrose and his tilings, you get extra mathy Matty Boy bonus points.

Let's start simple, with tilings that involve regular polygons, straight line shapes where all the line segments are of equal length and all the angle measures are also equal to each other.


If we use only one regular polygon repeated over and over, there are only three possible tilings of the plane. The most famous is the square grid. Also well known is the hexagon tiling, which is the shape bees use in a honeycomb, and the third is a triangular tiling. All the angles at any corner must add up to 360 degrees, so with a triangle it's 6x60, with a square it's 4x90, and the hexagon gives us 3x120.

So far, so good.



There are also tilings where we mix and match two or more regular polygons to fill all the space. The most common of these uses octagons, where an octagon is surrounded north, south, east and west with other octagons, and the gaps created are squares. This is a well known linoleum tile pattern.


We can do something similar the with twelve sided regular polygon, known as a dodecagon. If it has dodecagons as neighbors at six of the sides, the gaps are regular triangles.


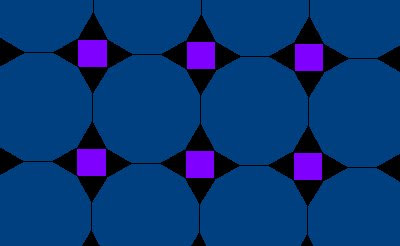

If we have dodecagons meet each other north, south, east and west, the gaps created can be filled with four triangles surrounding a square.


There are several ways to use triangles and hexagons together to tile the plane.

Of those, this one is my favorite.



Likewise, there are several ways to use triangles and squares together, and this one is my favorite of these.


The last mix and match tiling I present here is this pattern using hexagons, triangles and squares together. If you look at a hexagon and the squares and triangles that surround it, those shapes together define a dodecagon.

There are plenty more. If you want to try your hand at finding some, knock yourself out. It makes for fun doodle time.
